NPT 2100

Compact High Performance Access Aggregation and DCSG


NPT 2100 is an access router designed for next generation services and applications. With support for multiple access technologies , it is optimized for the access edge. It is temperature hardened, with high throughput, a small form factor, and is suitable for both outdoor and indoor deployment

NPT 2100 Overview

NPT 2100 provides 800G non-blocking switching capacity and 1G/10G/25G/50F/100G/200G and 400G interfaces in a 1RU form factor. It provides an extensive set of interfaces for multiple access technologies such as Ethernet, MPLS, PON and legacy TDM, making it the ideal solution for deployment at the access edge. With a full set  IP/MPLS transport capabilities, the NPT 2100 can efficiently aggregate and route the services over the network, meeting their service performance needs (SLAs) on a service by service basis.

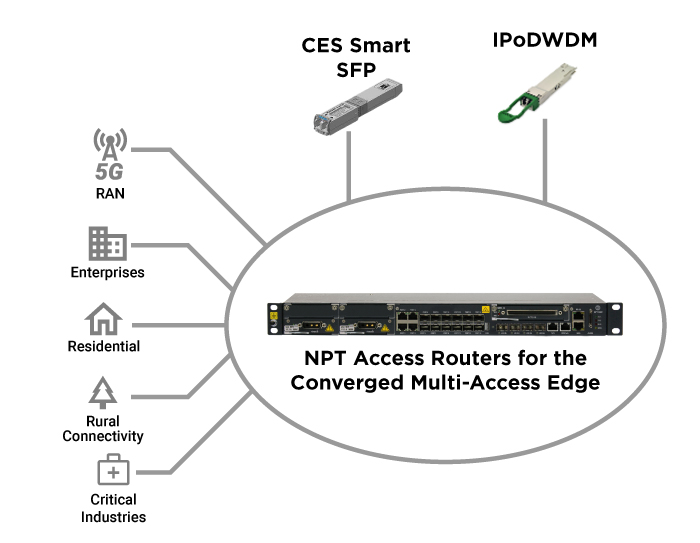

Neptune 2100 Diagram

NPT 2100 Benefits and Features

hub

Converged Multi-Access Edge

stream

High Performance, High Capacity

device_hub

Multiple Deployment Options

zoom_out_map

Open NE for 3rd Party Management

NPT 2100 Product Specification Highlights

Download NPT 2100 Datasheet

Performance

Switch capacity: 800Gb/s @600Mpps

Physical Specification

1RU, Dimension: 440 mm (W) x 302 mm (D) x 44mm (H)

Routing Capabilities

Layer 3, Layer 2, IP/MPLS, RSVP-TE, MPLS-TP, Segment Routing, Multicast

Services
  •    L2VPN - MEF 3.0 (IP-MPLS and MPLS-TP)
  •    Ethernet Virtual Private Network (EVPN)
  •    L3VPN
  •    Circuit Emulation Services (CES); SAToP, CESoPSN, CEP

Multi-Access Pluggables

  • TDM; E1/T1, E3/DS3, STM-1/OC-4, STM-16/OC-48
  • PON; Smart SFP 10G XGS-PON - 10G SFP+ OLT Optics modules
OAM

Streaming Telemetry, sFlow, ZTP, TWAMP, Ethernet OAM, IP OAM, MPLS-TP OAM, MPLS OAM, RFC 2544, Y1564, Generator, Y.1564, Link Delay Measurement, LLDP, DHCP

IPoDWDM:

CWDM, DWDM, Amplifiers, 100G/200G/400G coherent interfaces, ZR and OPENZR+ applications, CFP2 DCO for 100G/200G, QSFP_DD for 100/200/400G

Manageability

CLI, LCT, SNMP MIB, NETCONF/gRPC, YANG models (OpenConfig, IETF), Muse, LightSOFT, ZTP

Operating Environment and Altitude

-40°C to +65°C (10,000 ft)


Continued in NPT 2100 Datasheet

Request an IP Optical Quote

NPT Product Family

NPT IP Routers

Access Aggregation

Router NPT 1022 NPT 1050 NPT 1100 NPT 1250 NPT 1300 NPT 1800 NPT 2100

Fit

High Capacity CPE and Access Aggregation

High Availability Access Aggregation

Compact Access Aggregation

High Availability Multiservice Access Aggregation

High Capacity, High Availability  Access Aggregation

High Availability Multiservice Aggregation

Compact High Performance Access Aggregation and DCSG

Form Factor

Fixed and modular variants

Modular
fully redundant

Fixed and modular variants

Modular
fully redundant

Modular
fully redundant

Modular
fully redundant

Fixed

Height

1RU

1RU

1RU

2RU

3RU

8RU

1RU

Switching Silicon

Qumran -UX

Qumran -UX

Qumran -AX

Qumran -AX

Qumran -MX

Jericho+

Qumran -2A

Switching Capacity

Modular: 64 Gbps
Fixed: 96 Gbps

300 Gbps

300 Gbps

300 Gbps

1Tbps

2Tbps

800 Gbps

High-Speed Optical I/Fs



CWDM, DWDM, 100G, coherent ZR, OPENZR+

CWDM, DWDM, 100G coherent,  ZR & OPENZR+

CWDM, DWDM, 100G coherent

CWDM, DWDM, 100G coherent

CWDM, DWDM, 100G coherent

CWDM, DWDM, 100G/200G/400G coherent, ZR & OPENZR+
