Access Aggregation Routers

Purpose-Built for 5G xHaul, Converged Interconnect Network, and the Access Edge for Broadband Backhaul


Ribbon’s Access Routers are purpose-built for 5G xHaul, converged interconnect networks (CIN), the access edge for broadband backhaul and mission-critical applications. They are ideal for converging the access edge across these network types by providing support for multiple access technologies including Ethernet, TDM (CES) and XGSPON.

Access Aggregation Overview

NPT access routers can be supplied as a fully integrated routers or with hardware from a certified Original Device Manufactures (ODM) and supports a full range of hardware with modular and fixed configurations and fully redundant and non-redundant options  With this mix of form factors and the agility offered by NPT's software, these routers are the right-fit to meet to service needs today and for years to come.

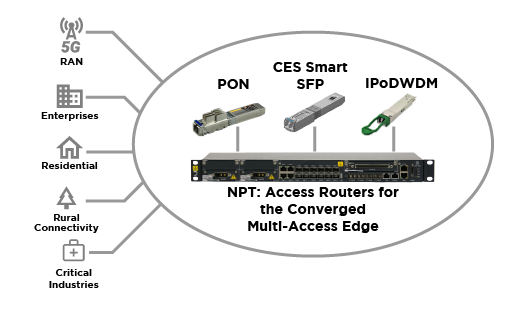

Neptune 2032 Sonic

Access Router Products

table_rows

NPT 1022

1RU platform providing 64 Gbps switching capacity. Supporting IP/MPLS and MPLS-TP from a single platform.

NPT 1050

Compact fully redundant, modular multi-access access router, optimized for carrier class deployment.

table_rows

NPT 1100

High capacity, density access router optimized as a cell site router, providing 300G switching capacity in a 1 RU form factor.

table_rows

NPT 1250

Multiservice, fully redundant platform, that is an access hub for 5G and broadband backhaul networks. Provides 560Gbit interface switching, 300 Gbit/s processing capacity in 2RU form factor.

table_rows

NPT 1300

Compact, high-performance, multiservice aggregation router with  full redundancy for high-availability applications.  Provides 1 Tbps switching capacity in a 3RU shelf

table_rows

NPT 1800

Multiservice aggregation router that provides full redundancy. It provides 2 Tbps switching capacity in an 8RU shelf.

table_rows

NPT 2100

High capacity, density access router, providing 800G capacity in a 1RU form factor. Supports multi-access technologies in a temperature hardened architecture.

table_rows

Ribbon's IP Wave rNOS

Ribbon's IP Wave rNOS is a unified NOS used across our entire IP portfolio.

table_rows

Muse Multi-Layer Automation Platform

MUSE™ rapidly creates and provisions innovative services, ensuring the network is continuously optimized and available

NPT Product Family

NPT IP Routers

Access Aggregation

Router NPT 1022 NPT 1050 NPT 1100 NPT 1250 NPT 1300 NPT 1800 NPT 2100

Fit

High Capacity CPE and Access Aggregation

High Availability Access Aggregation

Compact Access Aggregation

High Availability Multiservice Access Aggregation

High Capacity, High Availability  Access Aggregation

High Availability Multiservice Aggregation

Compact High Performance Access Aggregation and DCSG

Form Factor

Fixed and modular variants

Modular
fully redundant

Fixed and modular variants

Modular
fully redundant

Modular
fully redundant

Modular
fully redundant

Fixed

Height

1RU

1RU

1RU

2RU

3RU

8RU

1RU

Switching Silicon

Qumran -UX

Qumran -UX

Qumran -AX

Qumran -AX

Qumran -MX

Jericho+

Qumran -2A

Switching Capacity

Modular: 64 Gbps
Fixed: 96 Gbps

300 Gbps

300 Gbps

300 Gbps

1Tbps

2Tbps

800 Gbps

High-Speed Optical I/Fs



CWDM, DWDM, 100G, coherent ZR, OPENZR+

CWDM, DWDM, 100G coherent,  ZR & OPENZR+

CWDM, DWDM, 100G coherent

CWDM, DWDM, 100G coherent

CWDM, DWDM, 100G coherent

CWDM, DWDM, 100G/200G/400G coherent, ZR & OPENZR+
