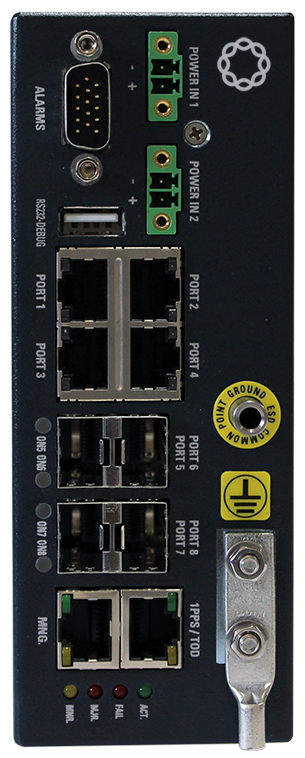

NPT 1012D

Managed Packet Transport Edge Device

The NPT 1012D is an extremely compact edge device supporting Ethernet, Circuit Emulation Services (CES) MPLS-TP and IP/MPLS. The NPT 1012D supports two form factors, a hardened DIN-rail form factor optimized for remote locations with strict environmental and size requirements. A rack mountable form factor which uses a special 19” rack adapter allowing 2 NPT 1012Ds to be mounted side-by-side. In both its hardened DIN-rail form factor, or its 19” rack mountable form factor it supports 32 Gbps switching capacity, this makes it a perfect fit for operators looking for a flexible fully managed packet transport edge device.

Resources

NPT 1012D Datasheet

All Resources

NPT 1012D Overview

The NPT 1012D uses Ribbon’s industry proven IP Wave rNOS operating system to support Ethernet, IP/MPLS, MPLS-TP, segment routing and PON. The IP Wave rNOS streamlines multiservice networks by combining end-to-end service delivery with mission-critical grade assurance and control. With such a rich and robust feature set NPT 1012D is well suited for a wide variety of applications and networking scenarios. These include a gateway for mission-critical services, wholesale service delivery, and business VPN connectivity services. As with all of Ribbon’s NPT portfolio, NPT-1012 is managed by Ribbon’s Muse™ software suite.

Neptune 1010 Diagram

NPT 1012D Benefits and Features

Hardened Din Rail Switch

Compact Multiservice Edge

Low Power

Product Specification Highlights

Download NPT 1012D Datasheet

Packet	Switch: 32 Gbps Services: MEF CE2.0 (E-Line, E-LAN, E-Tree, E-Access) PN and VPN based Ethernet and IP, MPLS-TP Traffic Interfaces: 4 x 10/1GE (SFP+), 4 x 100/1000 Base-T (RJ45)
TDM	Services: CES (SAToP, CESoP SN) 4x E1/T1 (per smart SFP), 4 x STM-16/OC-48 (per smart SFP)
WDM	Colored C/DWDM, Tunable G.709
Timing & Syncronization	Built-in GNSS receiver, SyncE with ESMC, 1588v2, External timing 1PPS and TOD, Internal Stratum 3 clock (holdover state), Primary and secondary sources (supports SSM bits), ACR, DCR, loop timing on SAToP, and SNTP
Protection & Restoration	RSTP/MSTP, G.8032 Ethernet Ring Protection (ERP), MPLS-TP FRR, 1:1 Linear protection, PW Redundancy (PWR), multi segment-PW, IEEE 802.3ad Ethernet Link Aggregation (LAG) with LACP, Multi-chassis LAG (MC-LAG) Aggregation (LAG) with LACP, Multi Chassis LAG (MC-LAG)
OAM	Ethernet OAM - IEEE802.3ah; IEEE 802.1ag and ITU-T Y.1731 PM, IP OAM - BFD, Ping, Trace-route, TWAMP ; MPLS-TP OAM - G8113.2, RFC5860, BFD ; MPLS OAM – Ping/Traceroute MPLS; RFC 2544 Generator, Y.1564; LLDP; DHCP Relay; Streaming Telemetry; sFlow ; Link Delay-Measurement
Traffic Management	Traffic classification (based on Port, VLAN, Port+VLAN, IEEE 802.1p and DSCP), diffserv based TM, network Connection Admission Control (CAC), 8 Classes of Service (CoS)
Topologies	Mesh, dual homing , multi-ring, ring, star, linear
Security	Control-plane and management plane protection, Authentication, Authorization, and Accounting (AAA), RADIUS , Terminal Access Controller Access-Control System Plus (TACACS+), Secure Shell (SSH), Layer 2 and Layer 3 ingress Firewall filters (ACL) ,Unicast Reverse Path Forwarding (Unicast RPF), IEEE802.1x

Continued in 1012D Datasheet

Resources

Datasheet

NPT 1012D

Request an IP Optical Quote

Neptune IP Routers

Compact CPEs

Router	NPT 1015	M6424	NPT 1012D	NPT 1022	NPT 2100
Fit	Fanless MPLS-TP Demarcation Device	Converged FrontHaul	Highly Compact CPE for Critical Infrastructure	High Capacity CPE and Access Aggregation	Compact High Performance Access Aggregation and DCSG
Form Factor	Fixed	Fixed	Fixed	Fixed and modular variants	Fixed
Height	1RU	1RU	DIN-Rail plus 1RU option	1RU	1RU
Switching Silicon	n/a	n/a	Qumran -UX	Qumran -UX	Qumran -2A
Switching Capacity	8 Gbps	800Gbps	32 Gbps	64 Gbps	800 Gbps
Datasheet	NPT 1015	M6424	NPT 1012D	NPT 1022	NPT 2100
